Vehicle GPS Locator Realtime Vehicle Tracking
- Fleet Vehicle Monitoring System
-
Our Vehicle GPS Locator is user friendly and highest precision location solution. User could login individually to monitor the realtime tracking and navigating their vehicle whereabout.
Download our Mobile Apps
Advantages
- Real time tracking and 30 days historical playback
- Total mileage report
- Web capabilities, Iphone (iOS) and Android OS support
- 12 months warranty
Feature
- Vehicle positioning by GPS
- Support quad band 850 / 900 / 1800 / 1900 MHz
- High sensitivity, new craft and the most advanced GPS chip
- Small size, easily hidden
- Low power consumption
- Fast signal capture
- Support both SMS locationg and GPRS tracking tow models
- Support location query through SMS and internet
- Locate the target by SMS
- Disable fuel system
- Anti-theft notifications

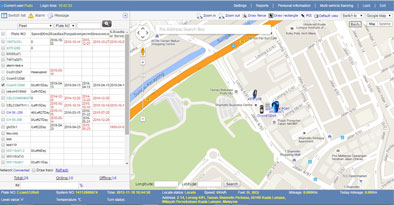

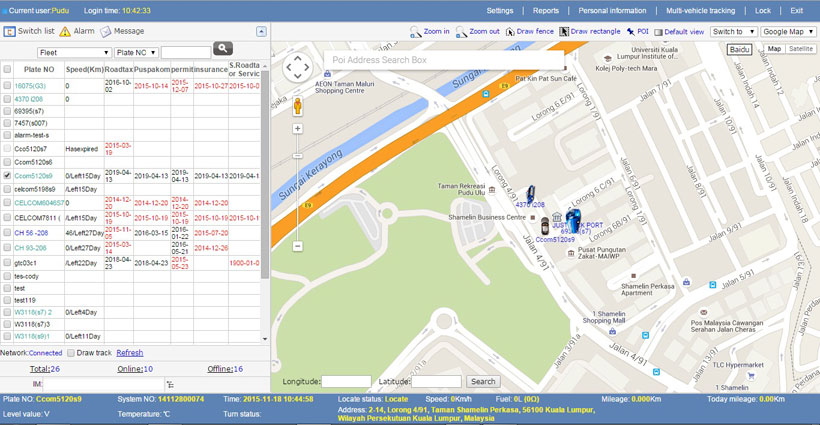

Our Platform
- Reminder of renewal date for - roadtax, puspakom, permit, insurance and roadtax/service date.
- Status of vehicle
- Speed(km)
- Location address of vehicle
- Realtime tracking

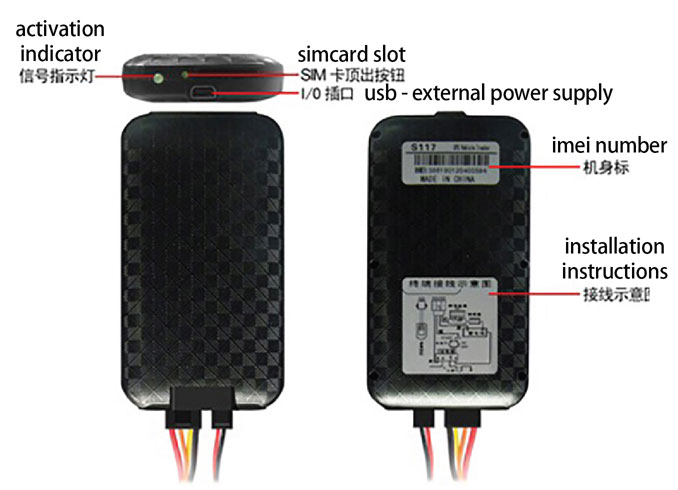

GPS Models

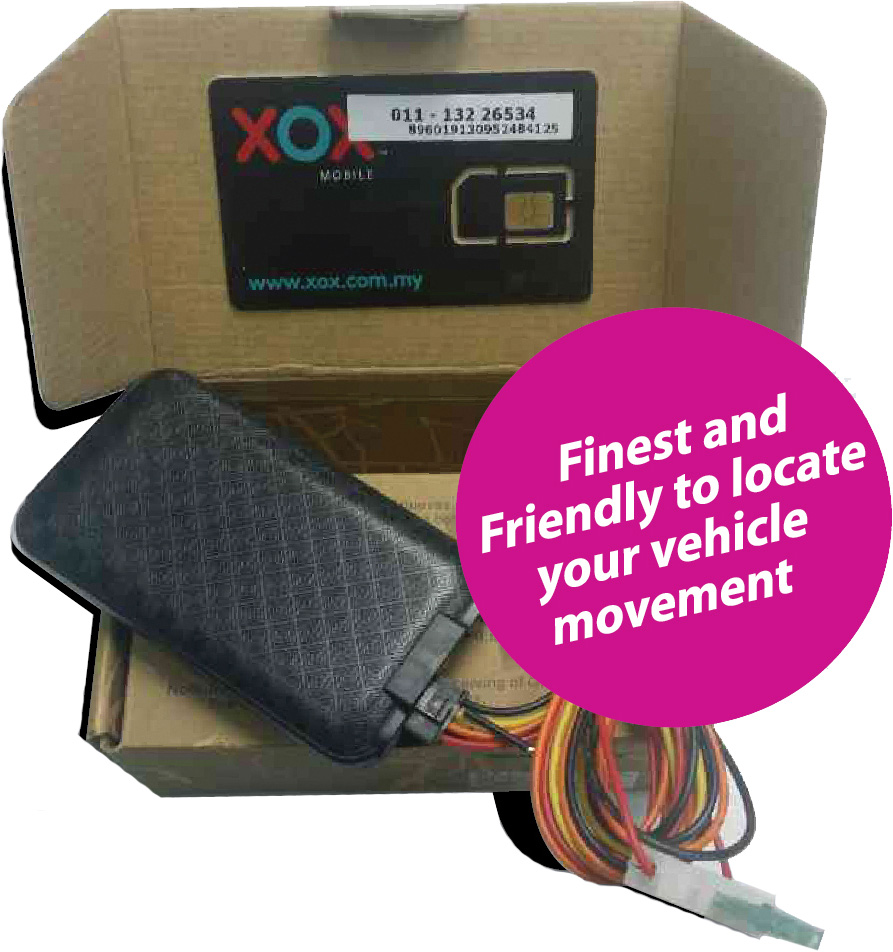

Specifications
| Size | 85mm*63mm*25mm (3.3"*2.5"*0.98") |
| Weight | 110g |
| Network | GSM/GPRS/GPS |
| GSM | 850/900/1800/1900Mhz |
| Chip | MT6252 |
| GPS Chip | MT3326 |
| GPS Sensitivity | -159dBm |
| GPS Precision | 10m |
| GPS locating time | Cold start 45S Warm start 35S Hot start 1S |
| Working Voltage | 10V---36V |
| Built-in Battery | 3.7V 180mAH |
| Stand-by Time | 2 hours (The specific time long base on GSM network conditions) |
| Storage temperature | -40°C to +85°C |

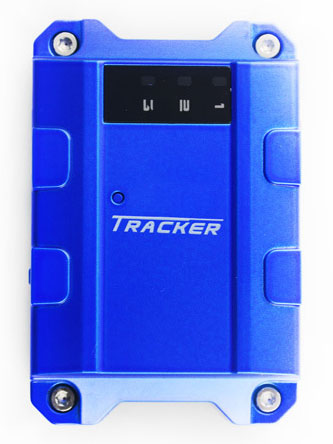

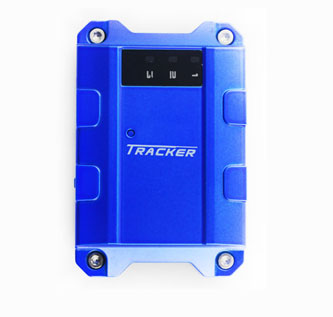

Specifications
| GSM | 850/ 900/ 1800/ 1900 MHz |
| GPRS | Class12, TCP/ IP build in GSM Module |
| GPS | U-blox |
| GPS Channels | 56 |
| Tracking sensitivity | -162dBm |
| Locating time cost | Hot start: < 1sec(open sky) Warm start: < 29sec Cold start: < 29sec(open sky) |
| Antenna | Built-in GSM quad band antenna, GPS high gain antenna. |
| Battery | 1000mAh |
| Monitoring range | 5M |
| Voltage input range | 8-50 VDC |
| LED indicator | Three LED indicator: GPS-blue, GSM-green, Power-red |
| Dimensions | 72(L)× 47(W)× 22(H)mm |
| Weight | 60g |
| Application environment | Operating temperature: -25℃ to +70℃ Operating humidity: 5% to 95% non-condensing |

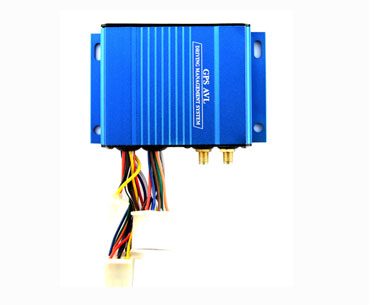

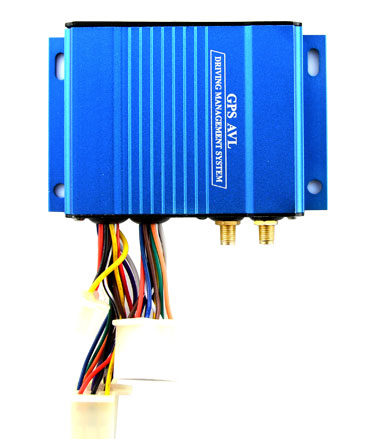

Specifications
| Dimension | 101mm*65mm*30mm |
| Gross Weight | 0.81KG |
| Exterior Power Supply | DC8V-36V |
| Inner Lithium battery | Last more than 4 hours |
| Communication protocol | UDP/TCP |
| GPS Sensitivity | -159dBm |
| GPS frequency | L1,1585.42MHZ |
| C/A coding | 1.023 MHz chip rate |
| Routeway | 20 |
| Default data | WGS-84 |
| Height restriction | 6000 feet |
| Speed restriction | 1000 knots |
| Acceleration restriction | Less than 4g |
| Exterior GSM antenna | Receive GSM Signal better |
| Exterior GPS antenna | Receive GPS signal better |
| Power Consumption | Active mode(avg.)50mA-160mA when exterior voltage is 12V Sleep mode <20mA |
| Operating Temperature Range | -20℃ to +70℃ |
| Humidity | Up to 95% non-condensing |
| position accuracy | 10-metres,2D RMS |
| GSM chip | support Tri-band(900/1800/1900 MHz) , Quad-band(optional) |
| GPS chip | JRC 595 |
| Hot start | 1 sec., average |
| Expansion of peripheral | Three peripherals(handle/camera/ scheduling screen) |
| LED light | Red: power-on state; yellow: module state; |
20% OFF Introductory Promotion Price for Vehicle GPS Locator ! Now only RM799.
Promotion valid until 31 December 2015. So hurry up !!
